NCR Voyix CX7ii POS Terminal
As NCR’s new flagship terminal, the CX7ii couples an upscale and dramatic integrated design with best-in-class performance. Building on its landmark predecessor, the CX7ii’s exceptional versatility, ruggedness and unsurpassed data security delivers the key requirements to withstand today’s high-risk interconnected world. And you will immediately recognize how the CX7ii’s form, materials and flexibility testify to NCR’s 139 years of global experience
Showing shoppers they matter
The NCR CX7ii offers head-flip capabilities. An internal sensor notifies your software to rotate the screen view when the CX head is flipped, so the cashier can present the screen to the shopper at any point during the transaction. You can even enable a self-service mode when the checkout is not attended by a cashier. It’s just one more example of how you can leverage your POS sets to open great new avenues of customer interaction and satisfaction.
Because one size doesn’t fit all

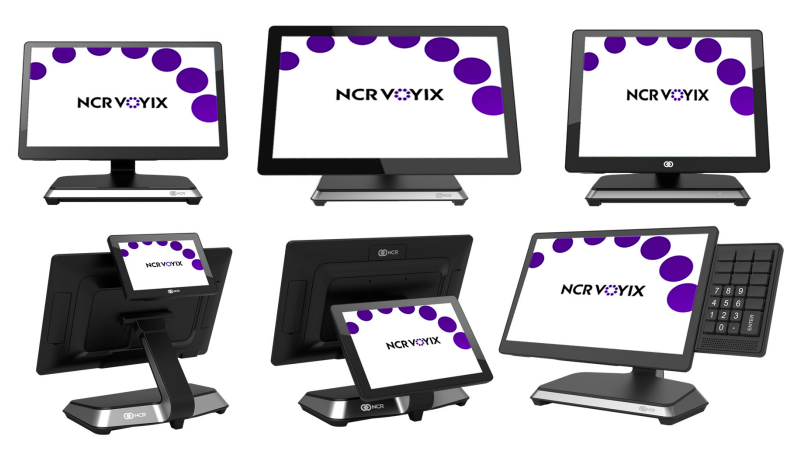

NCR offers a variety of matching displays to meet the needs of every commerce environment. Our small top- mount display is “all points addressable” enabling any character set or size. The 7″ and 10″ LCD wide-aspect displays offer superbly bright and crisp color to draw the shopper’s attention and ensure your messages and key marketing promotions get across and take hold. Even better, these customer displays are available with touch-screens to promote real-time interaction.
Standing alone
The CX7ii can operate with its trim integrated stand, which hides all its peripheral connections neatly inside the base. These connections can optionally reside within the display head itself for pole or wall mounting. And for the ultimate in flexibility, the CX7ii’s remote I/O option enables a comprehensive range of connections to be placed discreetly under the counter for the utmost in uncluttered elegance.
The inner beauty and the bottom line
Don’t let the CX7ii’s sophisticated good looks fool you. Under that handsome surface resides all the toughness and reliability required to thrive in harsh retail environments. Its rugged die-cast aluminum chassis, long-life LCD display and projected capacitive touchscreen tell you that NCR has spared no effort in building your new terminals to last. And last. And last. As with all NCR’s POS products, the CX7ii had to prove itself. Our demanding environmental and compatibility testing, along with exacting manufacturing standards, helps to ensure your NCR CX7ii will give you years of dependable operation.
Technical specifications
PROCESSOR
•Intel Core i5-13500TE (Gen 13) w/Intel vPro® technology
•Intel Core i3-13100TE (Gen 13)
MEMORY
•8GB up to 32GB DDR4-2400 in 2 slots
STORAGE
• Single 120GB M.2 SATA solid-state drive
•Single 240GB or 480GB NVMe solid-state drive
•Dual/RAID 120GB M.2 SATA solid-state drives
Operating systems
•Windows 10 IoT Enterprise 2021 LTSC Embedded
•Windows 11 IoT Enterprise 2024 LTSC Embedded*
•Windows 11 Professional
•SLES Linux
•NCR Linux U
Connections — USB-centric I/O in stand*
•USB Ports
•2 x USB 3.0 5V PC
•3 x 12V powered USB (PUSB)
•1 x 24V powered USB (P-USB)
•1 x USB Type C (to display head)
•1 x Serial (DB9)
•1 x Serial (RJ50)
•1 x DisplayPort
•Cash drawer port (12 or 24 Volt with dual drawer support)
•10/100/1000MB (Gigabit) Ethernet LAN
•I/O remotely locatable in base/stand or on display head
*An alternate I/O option is available with four (4) additional serial ports and two (2) fewer 12V P-USB ports
