NCR Voyix VX40 POS TERMINAL
Exceptional performance and durability in a compact modular POS system VX40.
The new modular NCR Voyix POS Terminal VX40 features the energy-efficient Intel N97 processor with silent fanless operation – eliminating all moving parts to maximize reliability. Despite its compact size and small footprint, the VX40 is one of the most powerful POS modular terminals in its class, with the rugged toughness to give you years of lightning performance, low-cost operation and future-proofed flexibility to adapt to the everchanging demands of today’s retail. To precisely fit your current and future needs, our new energy-efficient modular terminal utilizes System-on-Chip (SoC) technology to enable lower power consumption while driving enhanced system performance. The VX40 capitalizes on the seamless integration of SoC to deliver a streamlined, compact design. Then the VX40 adapts to your precise needs with additional choices for operating systems and solid-state drives (SSDs) with support for M.2 SATA and NVMe — plus a full range of powered USB and serial I/O ports.
UNMATCHED VERSATILITY AND SIMPLICITY
Up to 50% smaller than traditional POS terminals in its class, the NCR Voyix POS Terminal VX40 will fit the tightest checkstand spaces. Its wall-mount option is further enhanced by the VX40’s DisplayPort and USB type C interface support, which not only dramatically simplifies connections but also ensures your counters will stay clear of cable routing issues. Either way, its unique ability to “add by subtracting” clutter and complexity will enhance the good looks of your countertop hardware and displays.
ENGINEERED FOR DEMANDING RETAIL ENVIRONMENTS
The VX40 carries forward the rich heritage of NCR Voyix innovation, adaptability, unrelenting toughness and sheer capability. Its potent performance and ultimate flexibility will serve your business deep into your planned — and your still yet-to-be-planned — future.
NCR Voyix has spared no effort in building our new efficient modular terminal. From the ground up, the VX40 was purpose-built and designed specifically for the rigors of retail.
Every detail shows smart decisions — like how its interior layout and air flows were engineered to prevent dust and contaminant buildup. The design also avoids hot spots that could compromise performance or reliability. All materials in the VX40 — down to component level — were carefully chosen for long life cycles and reliability.
IN A NUTSHELL
The VX40 is fast, flexible and relentlessly reliable. It saves space and it saves money.
You will find it to be an outstanding choice for any modular retail checkout environment.
Combine it with the extensive family of NCR Voyix displays, printers, scanner/scales, cash drawers and retail peripherals for a complete POS solution customized to meet your own unique requirements.
Technical specifications
Product dimensions
WIDTH 10″ (255 mm)
DEPTH 8″ (202 mm)
HEIGHT 3.2″ (82 mm)
WEIGHT 7 lb (3,18 kg)
Processor
•Intel N97 processor
Motherboard technology
•Intel N97 chipset
•USB Type C support
Memory
•8GB DDR4 2400MT/s SODIMM
•120GB M.2 SATA solid-state drive
•480GB M.2 NVMe solid-state drive

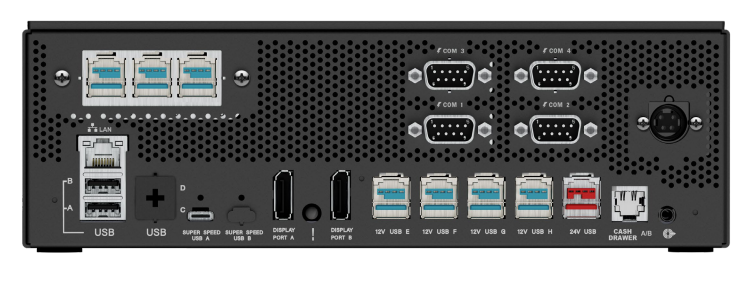

Connections
USB Ports
•2 x 5V USB 3.0 PC
•4 x 12V USB 2.0 (P-USB)
•3 x 12V USB 2.0 (P-USB) (additional/optional)
•1 x 24V USB 2.0 (P-USB) (for printer)
•1 x USB Type C
•2 x Serial RS-232 (DB9M)
•2 x Serial RS-232 (DB9M) (additional/optional)
2 x DisplayPort++
•1 x Audio (amplified)
•10/100/1000MB (Gigabit) Ethernet LAN
•Cash drawer port (24V with dual drawer support via “Y”– cable)
•WiFi support
Operating systems
•Windows 11 IoT Enterprise 2024 LTSC Embedded*
•SLES Linux
•NCR Voyix Linux U
Power
•External power supply
•24VDC, 150W
