NCR Voyix VX80 POS TERMINAL
Solid and powerful in a small package
Exceptional performance and durability in a compact modular POS system VX80.
The new modular NCR Voyix POS Terminal VX80 combines the latest Intel ®Generation-14 processor technology with elite versatility and security. Despite its compact size and small footprint, the VX is the most powerful POS modular terminal in its class, with the stubborn toughness to give you years of lightning performance, low-cost operation and futureproofed flexibility to adapt to the ever-changing demands of today’s retail.
To precisely fit your current and future needs, our new flagship modular terminal gives you the choice of CoreTM i3 and Core-i5 CPUs from Intel’s powerful Raptor Lake stable. These newest “S‒Refresh” models feature higher clock speeds and core counts, delivering the ultimate in performance.
Then the VX adapts to your precise needs with additional choices for memory, operating systems, single or a dual solid-state drives (SSDs) with support for M.2 SATA, NVMe and RAID — plus a full range of powered USB and serial I/O ports.
UNMATCHED VERSATILITY AND SIMPLICITY
Up to 50% smaller than traditional POS terminals in its class, the NCR Voyix POS Terminal VX80 will fit the tightest checkout spaces. Its wall-mount option is further enhanced by the VX80’s DisplayPort and USB type C interface support, which not only dramatically simplifies connections but also ensures your counters will stay clear of cable routing issues. Either way, its unique ability to “add by subtracting” clutter and complexity will enhance the good looks of your countertop hardware and displays.
ENGINEERED FOR DEMANDING RETAIL ENVIRONMENTS
The VX80 carries forward the rich heritage of NCR Voyix innovation, adaptability, unrelenting toughness and sheer capability. Its potent performance and ultimate flexibility will serve your business deep into your planned — and your still yet-to-be-planned — future.
NCR Voyix has spared no effort in building our new flagship modular terminal. From the ground up, the VX80 was purpose-built and designed specifically for the rigors of retail.
Every detail shows smart decisions — like how its interior layout and air flows were engineered to prevent dust and contaminant buildup. The design also avoids hot spots that could compromise performance or reliability. All materials in the VX80 — down to component level — were carefully chosen for long life cycles and reliability.
Technical specifications
Processors
•Intel Core i5-14500T (Gen 14) w/Intel vPro® technology
•Intel Core i3-14100T (Gen 14
Memory
• 8GB or 16GB DDR5 4800MT/s SODIMM
• Mix/match from 8GB up to 32GB in 2 slots
Operating systems
• Windows 11 IoT Enterprise 2024 LTSC Embedded*
• Windows 11 Professional
• SLES Linux • NCR Linux U

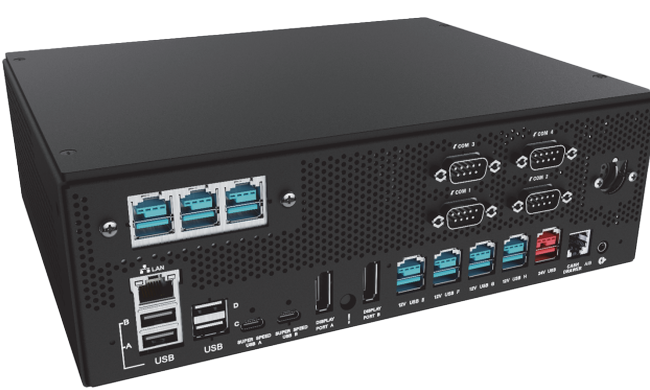

Connections
•USB Ports
•4 x 5V USB 3.0 PC
•7 x 12V USB 2.0 (P-USB)
•1 x 24V USB 2.0 (P-USB) (for printer)
•2 x USB Type C
•2 x Serial RS-232 (DB9M)
•2 x Serial RS-232 (DB9M) (additional/optional)
•2 x DisplayPort++
•1 x Audio (amplified)
•10/100/1000MB (Gigabit) Ethernet LAN
•Cash drawer port (24V with dual drawersupport via “Y”– cable)
•WiFi support
