Cambium Networks ePMP

ePMP Overview

The ePMP 4000 platform leverages the Qualcomm® Networking Pro Series Platform featuring Wi-Fi 6E technology. The solution offers scalability and interference mitigation based on its unique air interface. The platform takes advantage of the 802.11ax standard and overlays ePMP features such as TDD synchronization, SmartQoS and frame optimization. The upcoming 6 GHz spectrum will offer 850 MHz of new clean, low noise floor channels that will be ideal for the new capabilities offered in the ePMP 4600 such as orthogonal frequency-division multiple access (OFDMA), multi-user multiple-input, multiple-output (MU-MIMO) in both the uplink and downlink directions and TDD synchronization. The ePMP 4500 offers the same technology in the 5 GHz frequency band.

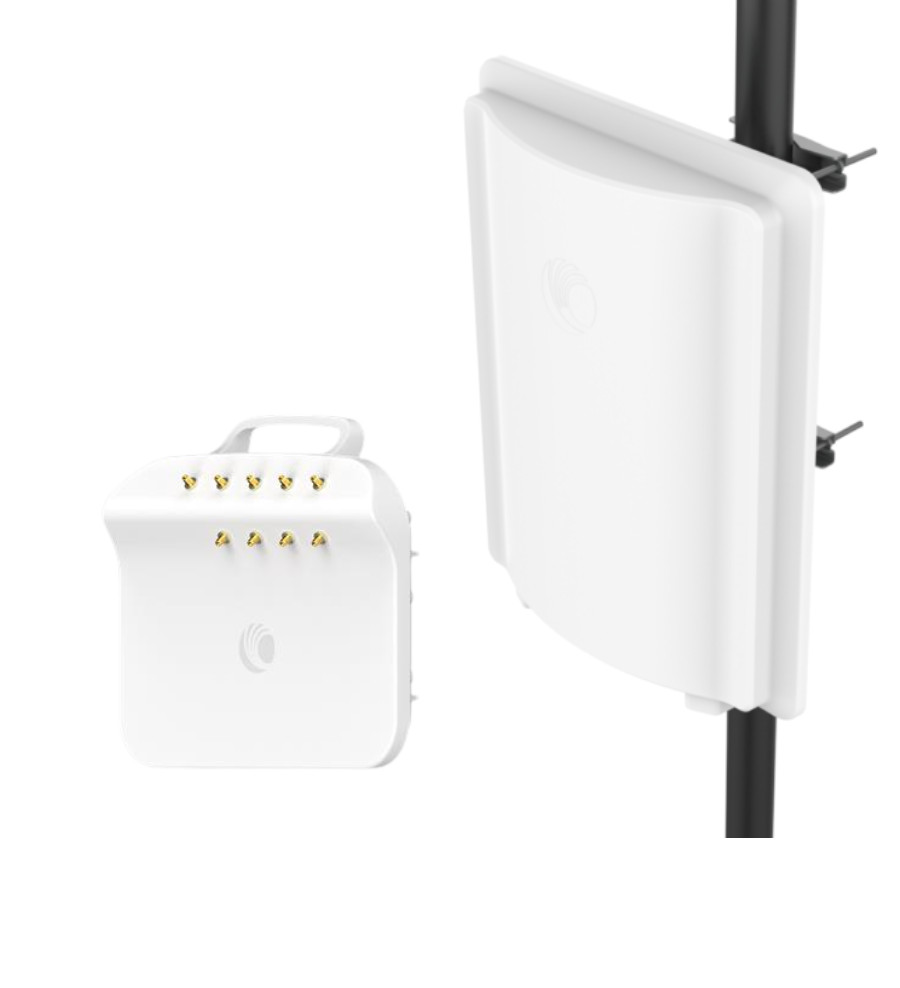

ePMP 4500 / 4500C / 4500L 5 GHz Fixed Wireless Access Point



Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. ePMP 4500 access points (AP) interoperate with Force 400 Subscriber modules and in the future will support backward compatibility to Force 300 Subscriber modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows ePMP 4500 APs to deliver consistently high-quality service plans to a large number of end users.



Download data sheet

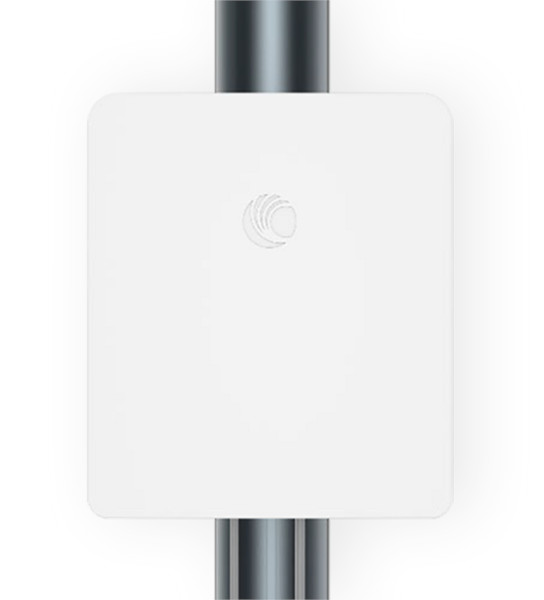

ePMP 5 GHz Force 4518 Series Fixed Wireless Subscriber Module

with Intelligent Filtering

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The ePMP Force 4518 Subscriber Modules (SM) meet this demand by offering high performance and low latency across both point-to-multipoint (PMP) and point-to-point (PTP) deployments.

Differentiating Features:

  • Small form factor popular for dense areas and where aesthetics are critical, with an integrated 18 dBi panel antenna.
  • High performance with up to 80 MHz channels, 1024QAM and low-latency performance when using ePTP technology.
  • Interoperability with the ePMP 4500, which uses MU-MIMO to achieve up to multiple Gbps per sector by transmitting to 3 ePMP 4500 SMs simultaneously.

Download data sheet

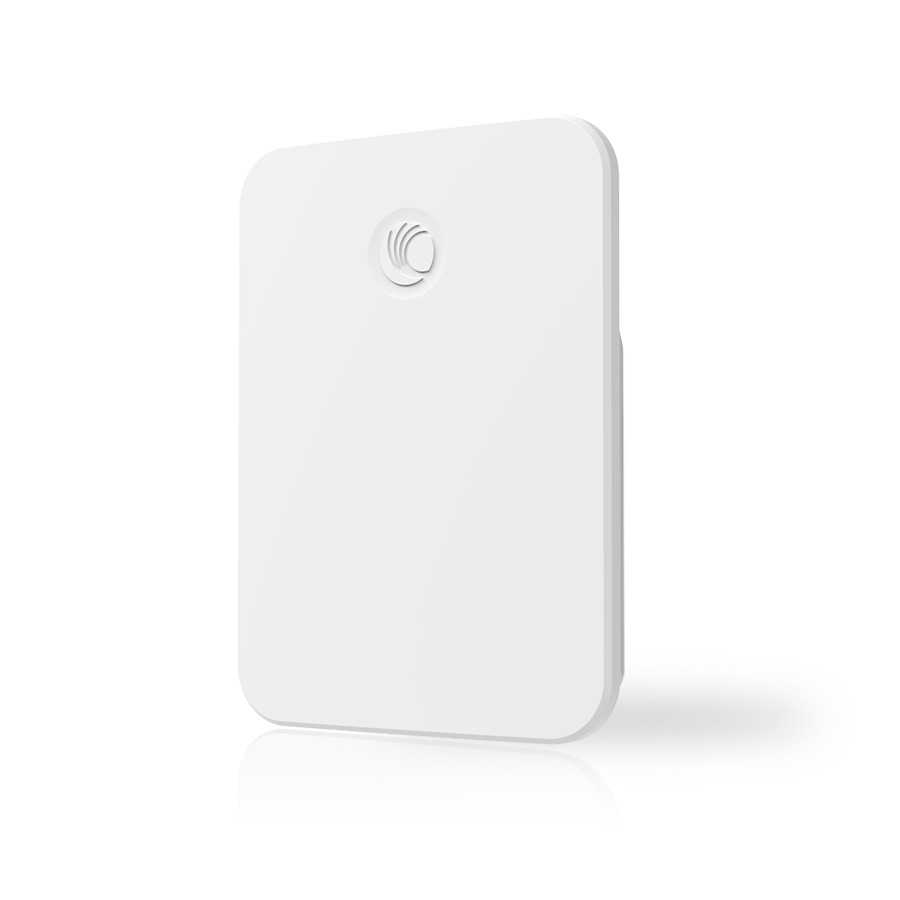

ePMP MP 3000 MicroPOP Fixed Wireless Access Point



The ePMP™ MP 3000 is Cambium Networks’ MicroPOP solution for WISPs and enterprise network operators. The MicroPOP MP 3000, part of the ePMP portfolio, injects additional capacity where it is needed most and extends network coverage in a cost-effective, lightweight manner.

Download data sheet

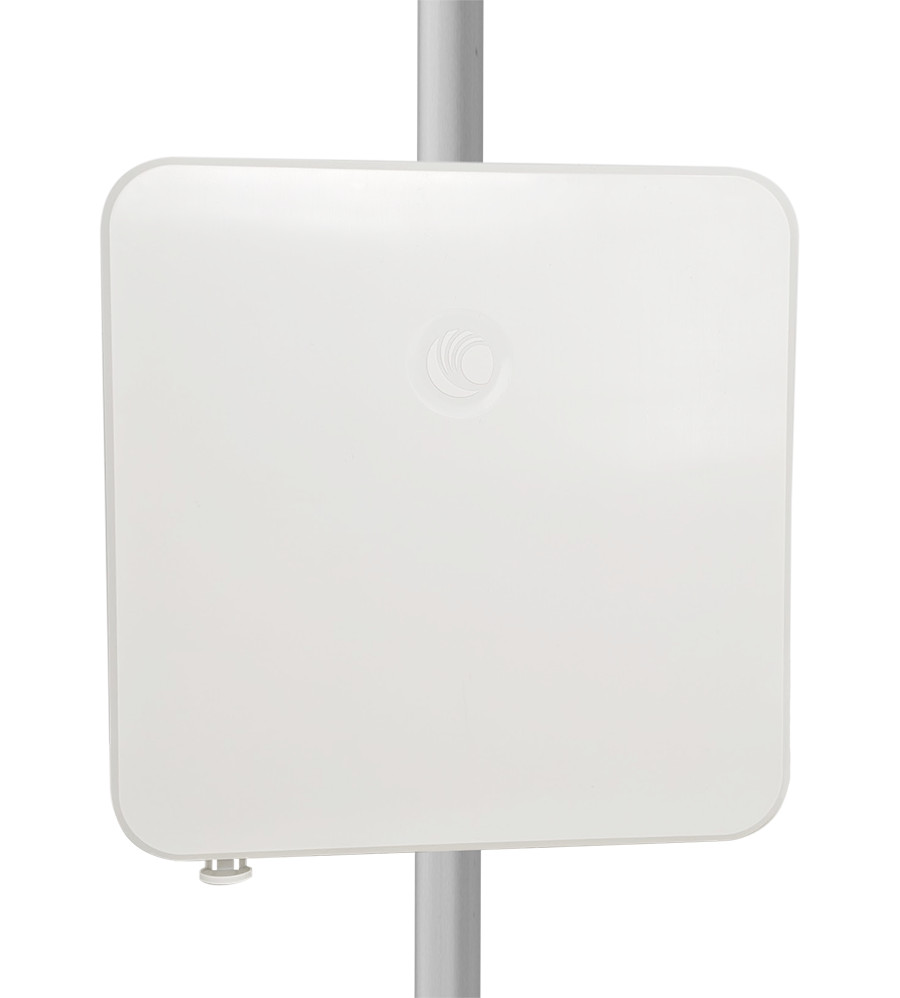

ePMP Force 300-19

The ePMP Force 300-19 is designed to operate in high interference environments and provides superior throughput up to 600 Mbps of real user data and supports channel sizes from 20 MHz up to 80 MHz and modulations up to 256QAM.

Channel Spacing configurable in 5 MHz increments
Frequency Range: Wide Band Operation 4910 – 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width: 20 / 40 / 80


Download data sheet

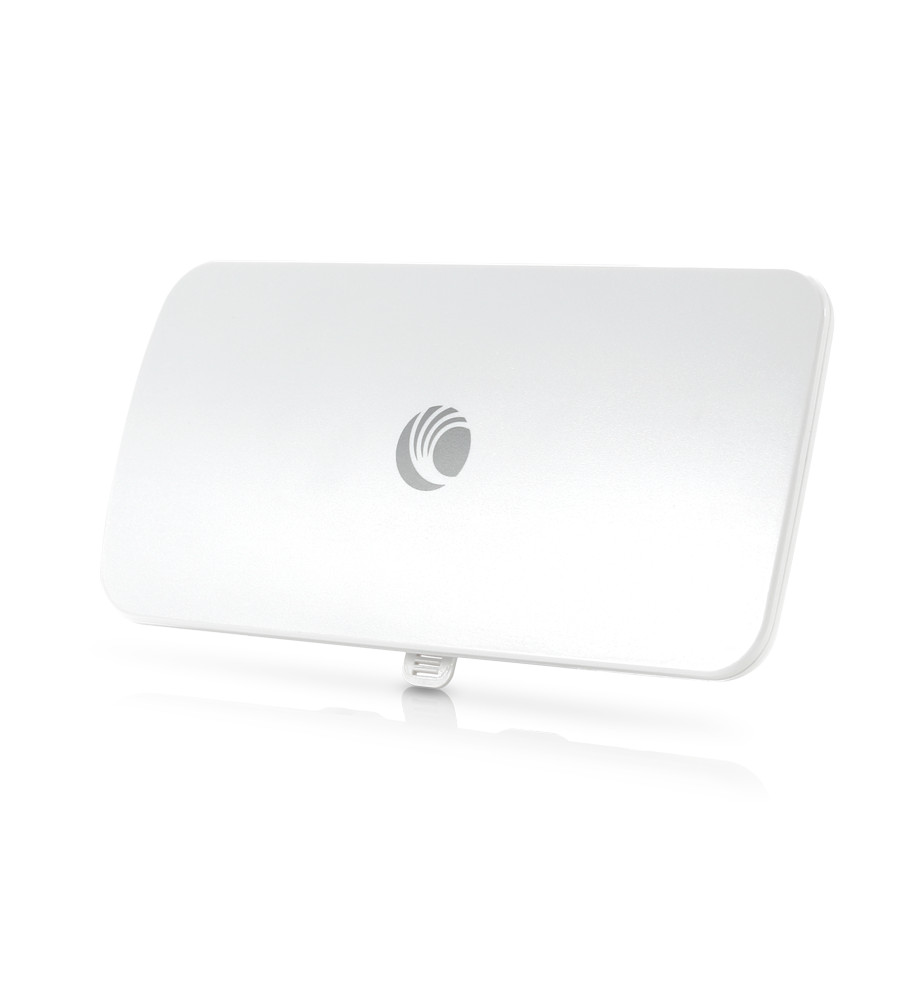

ePMP Force 300-16

Force 300-16 continues the tradition of previous products with a horizontal orientation mount providing a 15 degree beam width and 16 dBi gain.

The F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference. Supporting peak throughput greater than 500 Mbps, the Force 300-16 also supports an always on spectrum analyzer.

Cambium Networks’ ePMP™ Force 300-16 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.

The ePMP Force 300-16 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.

QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.

The ePMP Force 300-16 supports real time spectrum monitoring with out degradation in throughput with a horizontal orientation mount providing a 15 degree beamwidth and 16dBi gain, the F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference.

Download data sheet
